Design, production, OEM of automatic machine / production equipment

Products

Semiconductor manufacturing equipment

Taping Machine HPT-05FH

Taping Machine HPT-05FH
Pick up the diced WLCSP on the wafer ring, inspect the appearance, classify it, and store it in embossed tape.

Read more ...

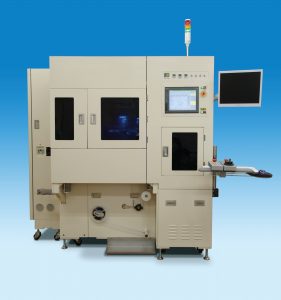

Taping Machine MAG-PT

Taping Machine MAG-PT
High productivity is realized with high speed pickup technology. Due to complete non-contact, the element can be positioned with no damage. By unique technology, small chips are stored accurately.

Read more ...

LED Test Taping Machine MAG‐LED3

LED Test Taping Machine MAG‐LED3
Taping machine that specializes in Multi-product support, High-speed processing.

Read more ...

LED Package Taping Machine iMAG

LED Package Taping Machine iMAG
It is possible to accommodate a wide range of variety, it has excellent compatibility. Thereafter, it is inspected posture and scratches from the top surface in the carrier tape. Then, select only non-defective, is a cover tape is heat-bonding, is wound by the reel. (After the tape insertion, there is an automatic replacement function) Specification...

Read more ...

Capacitor manufacturing equipment

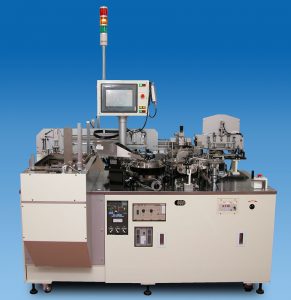

Pellet Welding machine HIC-P

Pellet Welding machine HIC-P
This is weld machine. First, align tantalum-chip capacitor in a certain posture by parts feeder. Next, one by one supplied to transport index table. Then, it will weld automatic in strip-shape carrier bar after a predetermined process such as the insertion of a Teflon ring. Specification Cycle time 2.0~4.0pcs/sec (It depends on the size of...

Read more ...

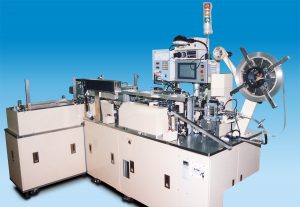

Lead frame Assembling Machine HIC-A

Lead frame Assembling Machine HIC-A
This is automatic welding machine for welding tantalum chip on frame. Specification Manufacturing flow ①Forming the lead frame would on a reel.(Minus tab bending) ②After the fixed-length cut, quantitative potting conductive paste. ③And transporting the chemically treated anodes in place. ④It is mounted on the plus tab of lead frame and welding. Cycle time 2.0~4.0pcs/sec...

Read more ...

Trimming, Forming & Taping Machine HIC-FLC

Trimming, Forming & Taping Machine HIC-FLC
Specification Manufacturing flow ①Cut out one by one element with a lead frame from the magazine. ②Cut off the lead frame element one by one. ③And chucking on a vacuum chuck on the index table, forming. ④After inspection by measuring instrument, taping good only. Cycle time 4pcs/sec Work piece size Corresponding various size (By the...

Read more ...

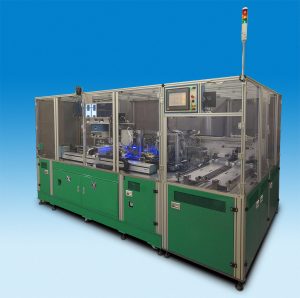

Anode Mounting Machine for Surface Mount Capacitor HIC-AM

Anode Mounting Machine for Surface Mount Capacitor HIC-AM
Specification Manufacturing flow ①Cut off one by one to a chemical treated the tantalum anode from the bar. ②Performing anode mount while correcting the X-Y position. (Θ is possible with an option too.) (Laser welding, resistance welding available.) Cycle time 3.0pcs/sec Work piece size Corresponding various size (Corresponding to the customer’s specification.) Supply system Bar...

Read more ...

Automatic Inspection Machine FIS

Automatic Inspection Machine FIS
Inspection Machine(Model : FIS)。FIS (Fine Inspection System) was named for these initials. This is a device for testing the characteristics of capacitors such as chip tantalum capacitors and reliability testing of packages. It is possible to perform good / bad sorting with high precision and gradient stability, measurement of leakage current value (LC), EST (equivalent...

Read more ...

V-chip Aluminum Electrolytic Capacitor Assembling Machine ADMAC-E

V-chip Aluminum Electrolytic Capacitor Assembling Machine ADMAC-E
after cutting the terminal of aluminum electrolytic capacitor, flat pressing. Capacity check after assembling seat plate. Print to head of aluminum electrolytic capacitor. After UV curing and LC measurement, taping in emboss tape good only. Specification Cycle time 120-200pcs/min Work piece size φ3~φ10 Application reel size By the customer’s specification Taping material By the customer’s...

Read more ...

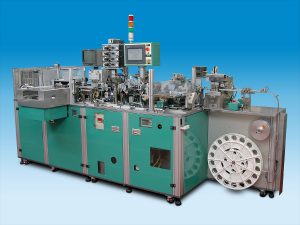

Stack-Type Aluminum Electrolytic Capacitor Assembling Machine APCseries

Stack-Type Aluminum Electrolytic Capacitor Assembling Machine APCseries
It can be stacked with high accuracy. Specification Cycle time 120-300 welding/min Corresponding size B~D size corresponding (Other size requires consultation) Supply system rack, magazine, reel etc. (By the customer’s specification) Collecting system palette,magazine etc. (By the customer’s specification) Supply system 200V (240V, 380V available) 50/60Hz Air 0.5MPa Exterior detentions 3,300(W) × 1,600(D) × 1,600(H)...

Read more ...

Lithium ion battery manufacturing facility

Large lithium-ion battery Electrode Stacking Machine LP-ESL

Large lithium-ion battery Electrode Stacking Machine LP-ESL
Electrode supply method has two types, one supply is from magazine, and another one is from roll. Then, positive electrode wrapped in separator, it stacked the negative electrode and a positive electrode alternately. After that, recovery tray discharge on conveyor. Specification Target size Various size corresponding. Suggest to suit specification. Capacity 1cell/2min (Reference size) *Depends...

Read more ...

Tab ultrasonic welding machine LP-WD

Tab ultrasonic welding machine LP-WD
An apparatus that specializes in research and development such as prototype manufacturing is available now. It sets the laminate and the positive electrode tab and the negative electrode tab on a jig. By the start command of the operator, the jig is moved to the welding position, and ultrasonic both tab individually. Then the jig...

Read more ...

Pouch Forming Machine LP-PA

Pouch Forming Machine LP-PA
First, supply the aluminum laminate film from the roll. Then, cut into strips of predetermined length. Next, forming and pilot hole drilling, both size trim. Finally, collect in a magazine. Specification Characteristic molding depth change is available. Target size Up to A4 size Capacity 1cell/30sec (Reference value) Power supply AC200V 50/60Hz Exterior dimensions 1,500(W) ×...

Read more ...

Three sides sealing machine LP-SE

Three sides sealing machine LP-SE
First, heat sealing three direction of packing material other than the electrolyte injection hole. Then, it is cooled after heat-sealing for increase the seal strength. It can change setting about seal temperature, time and pressure. Specification Characteristic It is possible sealing high quality seal condition change by using seal jig. Seal conditions change(time・temperature・pressure) available. Target...

Read more ...

Electrolyte Injector Machine LP-EF

Electrolyte Injector Machine LP-EF
Quantitative stable filling is possible. It is possible to correspond to the pump of each company. It is equipped with a vacuum chamber for impregnation improves. Specification Characteristics Optionally can be set for liquid filling conditions. Target size Suggest to suit specification. Capacity 1cell/1min (Reference value) (However, it varies depending on the filling conditions.) Power...

Read more ...

Vacuum Sealing Machine LP-VP

Vacuum Sealing Machine LP-VP
The work after electrolyte injection is evacuated, and then completely sealed. Specification Characteristic Vacuum box improves the corrosion resistance. It can be set for various data by adopting a touch panel. (Sealing pressure, Time, Vacuum reaching pressure) Target size Maximum A4 size (Other suggestions according to specifications.) Sealing shape Flat bar (Tab corresponding uneven seal is not...

Read more ...

Electric Double Layer Capacitor Production Equipment

Electrode Stacking Machine LP-ESD

Electrode Stacking Machine LP-ESD
Sheet separator correspondence! It supplied the strip electrode from the magazine. (With two up prevention function) Separator supplies from roll. Electrode and separator laminate alternately. Sheet separator bagging, folding, and wrap the electrode. After lamination the end, it will discharge the conveyor or on the stage. Specification Characteristic This is equipped with a positioning function,...

Read more ...

EDLC Coin Cell Manufacturing Machine DLC-A

EDLC Coin Cell Manufacturing Machine DLC-A
We suggest line of capacitor product. First, it will supply case and cap from parts feeder. Then, Gasket and separator incorporate in the cap. Electrolyte injection, after impregnation, it will seal the cap and the case. Finally, it will recover by classifying the good and defective products. Inspection Cycle time 0.6sec/pcs Corresponding size Small size...

Read more ...

Fuel cell manufacturing equipment

Electrode Stacking Machine LP-ESF

Electrode Stacking Machine LP-ESF
The equipment is to stack electrode film supplied from either in roll or in magazine. Specification Characteristic With positioning function, high precision lamination is possible. Various kinds of separators are also available. Cycle Time 2.0min Applicable Work size 150 × 150 Work Supply Magazine, Roll Collect System Conveyor, Stage Power supply 200V 50/60Hz Compressed Air...

Read more ...

Welding power supply

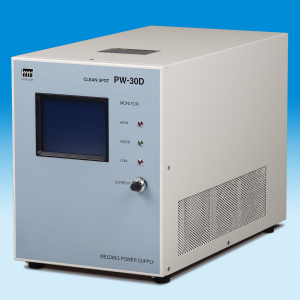

Resistance welding Power Supply PW-30D

Resistance welding Power Supply PW-30D
catalog download Resistance Weld Power Supply "PW-30D" is born as the crystallization of our 30 years of weld technology. Built-in LCD touch panel for easy operation. Downsizing (80 % content of previous model) Lightweighing ( 63 % weight of previous model) By combining the use of our designed weld-head, precise and minute weld can be...

Read more ...

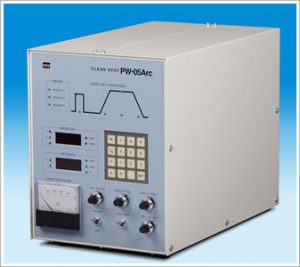

Arc Power Supply PW-05Arc

Arc Power Supply PW-05Arc
catalog download New product is added to our Power supply family. Arc Weld Power Supply “PW-05Arc” which uses the arc discharge for welding. It enables the satisfying weld even though the material and shape are difficult for spot weld. Specification Input Voltage AC200V Input Amperage 0.6KVA Max Output Voltage 50Volt Max Output Current 500Amps Output...

Read more ...

Please feel free to contact us. TEL +81-238-37-2905
